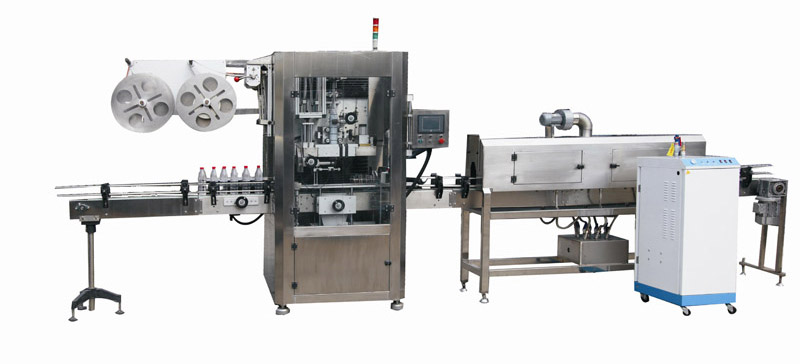

Sleeve labeling/Sticker labeling system


It has super powerful servo electrical appliance configuration, motor encoder for servo motor conveying line with high disposition, automatic trace with electric eye and whole line automatic stemless speed adjustment.

◆Synchronized transmission, any change of transmission belt will be finished quickly. Compared to the type of traditional multilayer whose change and maintain need more than six hours, it’s maintenance is easy and maintain is simple, so it doesn’t influence production.

◆Single shrinking label feed plane ,rensonal height which is convenient to fix the label; micro-computer auto figure which avoid enactment and adjustment .you only need to press it lightly ,the label will detect and locate automatially.The change of label is quick and convinent,besides,the cut place is absolutely exact .

◆The newly designed cutter head use step by step motor driving which speed is high ,action is exact, the cut is in order and the shrinking is beautiful. This design cooperate with the label synchronized location structure enable the precision of cut location within 1mm.

technical parameters :

Voltage:

1.  Host machine; AC220V, 50/60HZ, 1.5KW, single-phase

2.  Shrinking machine: AC380V, 50/60HZ, 18KW(steam heat )  / three phase

3.  Production speed: 9000~12000bottles/H

The standard length of label is 100mm and the speed can be adjusted accord to customer’s requirements. The speed will be faster if the label is shorter.

4.  Diameter of bottle body: ∮28mm-∮125mm

5.  Length of label: 30mm-250mm

6.  Thickness of label: 0.035mm-0.13mm

7.  Material of label:PVC、 PET、 OPS

8.Size of the label host machine: L2100MM*W850MM*H2000MM

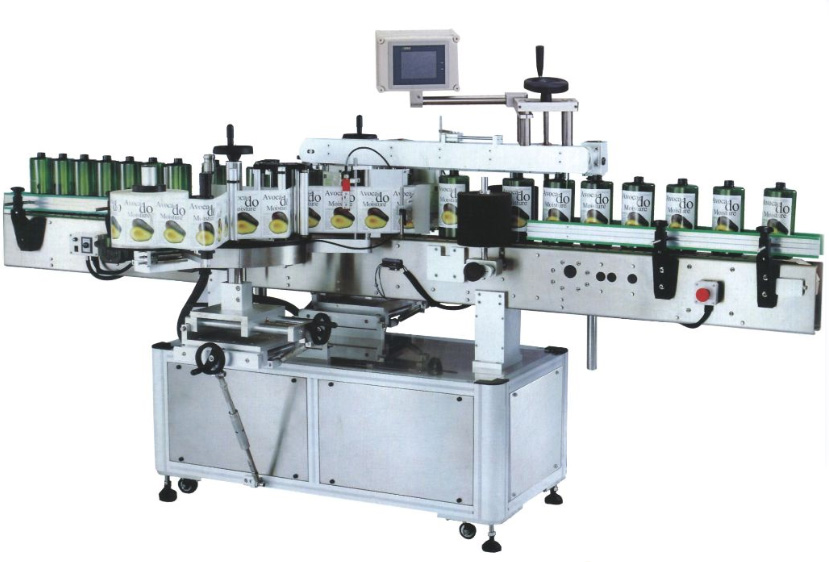

Sticker label machine


DWTB-C is economical, self contained, easy to operate, equipped with auto teach programming touch screen. Built in microchip storing different job setting makes fast and easy changeover. This automatic labeling system is ideal for slim cylindrical container with diameter from 10mm 25mm such as ampoule.

Labeling speed up to 250 CPM

Mian Feature:

1. All-cover type stainless steel host machine: the whole machine is waterproof as well as rustproof.

2. Adjustable cutter head: uniquely cyclotron cut-off, double sided cutting edge with a long service life.

3. Single positioning center guide pillar: a more stable for label delivery.

4. Synchronous bottle divider: a more stable transmission for bottle.

5. Bottom set of label brush: a more precision for casting label.

6. Label-controlling electric-eye shelf: unique combination of tail and electric-eye to improve the precision for

cutting off the membrane materials.

7. Push-button control cabinet: a more humanized operation.

8. Independent feeding material shelf: the position of the material shelf is optional at will.
