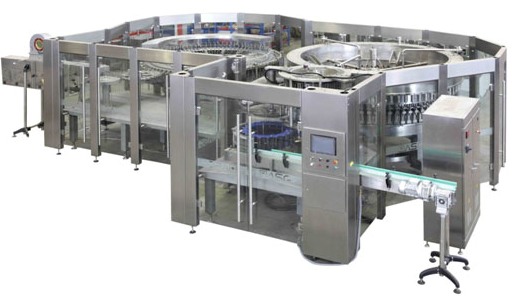

Drinking water filling
Products can be handled:
Pure water, mineral water, spring water, etc.
Containers can be handled:PET bottles with different volumes and shapes
Filling system:Gravity filling
Capacity:4000BPH-36000BPH
Technical features:
It adopts technology of air conveyor direct connect with bottle infeed starwheel to instead of screw and conveyor. It is easier and more simple to change over bottle size.
Adopt neck handling technology to convey bottles. There is no need to adjust the height of equipment and only need to change some spare parts.
High speed filling line adopts bottle gripper conveying technology. It is free to changer over bottle size and the working table inside the machine is more laconic.
By 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle changing is easier.
Specially designed stainless steel bottle gripper dose not contact the thread parts of the bottle neck, avoiding the second contamination.
High speed and mass flow filling valve ensures the high filling speed and exact fluid level.
Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic. The electric system is from international brand and achieves the national food hygienic standard.
The bottle-out starwheel is helical structure. While changing over bottle size, it is no need to adjust bottle-out conveyor height.
Main composition:
3-in-1 monobloc is composed of rinser, filler, capper, machine base, covering windowns, main motor and transmission system, cap unscrambler and electric control system, etc.
The overturning device of the rinser is mainly composed of water distributor, bottle gripper, upper rotary tray, guide trackl, protection cover, water spraying device and water collection tray.
Filling device is mainly composed of filling barrel, filling valve, guide rail, elevating device, elevating device, etc.
Capping device is composed of cap unscramblerr, cap falling chute and capper.
The auxiliary (or optional) equipment include rinsing water recycle tank, bottle-in air conveyor and bottle-out conveyor. In addition, the manual bottle feeding table (or bottle unscrambler) and automatic cap elevator can be equipped according to customer requirement.
manufacturers:
|
Technical Data |
||||
|
Model |
CGF14/12/4 |
CGF18/18/6 |
CGF24/24/8 |
CGF32/32/10 |
|
The number of Washing, Filling, Capping |
14-12-4 |
18-18-6 |
24-24-8 |
32-32-8 |
|
Producing capacity; The number of bottle(600ml)/hour |
2000-4000 |
5000-7000 |
8000-12000 |
12000-15000 |
|
Applicable bottle specifications (mm) |
φ=50-108 H=170-340 330ml-2.25L |
|||
|
Pressure (kg/cm2) |
2~3 |
|||
|
Motor power (kw) |
Main motor 1.5kw |
Main motor 2.2kw |
Main motor 3kw |
Main motor 4kw |
|
Outside vacuum pump power (kw) |
0.75 |
1.1 |
1.5 |
2.2 |
|
Overall dimension (mm) (LxWxH) |
2100x1400x2500 |
2460x1720x2650 |
3100x2100x2650 |
3500x2500x2650 |
|
Weight(kg) |
2500 |
3500 |
4200 |
5500 |

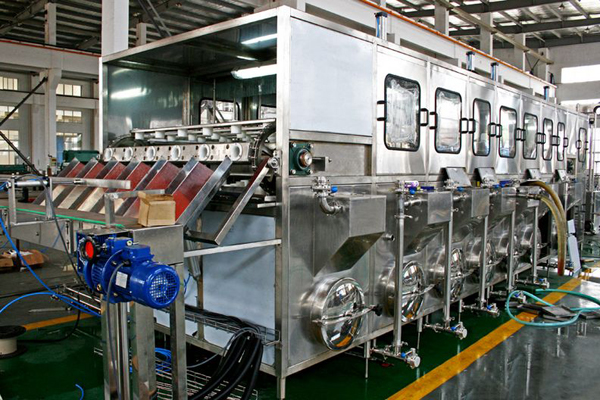

Barrelled water filling
Products can be handled:Pure water, mineral water, etc.
Containers can be handled:5 gallon（18.9L）
Capacity:100BPH-2000BPH
Technical features:
The machine integrates function of rinsing, filling and capping.
The machine is made of stainless steel, corrosion resistant and easy to be cleaned.
The main electrical components and pneumatic components all are from of international brand.
Water pump is CNP brand (Grundfos is available)
Rinsing Nozzle is made by American technology.
Main composition:
Automatic bottle loading system
Barrel washer
Filler
Capper (cylinder type or pedrail-type)
According to the customer’s requirement, automatic de-capper, automatic blow-checker, inner barrel brusher and external brusher, automatic cap elevator, heat shrink can be equipped.
|
Model |
QGF-100 |
QGF-200 |
QGF-300 |
QGF-450 |
QGF-600 |
QGF-900 |
QGF-1200 |
|
Filling heads |
1 |
2 |
3 |
4 |
5 |
6 |
8 |
|
Volume(L) |
18.9 |
18.9 |
18.9 |
18.9 |
18.9 |
18.9 |
18.9 |
|
Barrel size (mm) |
270x490 |
270\x490 |
270x490 |
270x490 |
270x490 |
270x490 |
270x490 |
|
Capacity (b./h) |
100 |
200 |
300 |
450 |
600 |
900 |
1200 |
|
Gas pressure (MPA) |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.6 |
0.6 |
0.6 |
|
Gas consumption (m3/min) |
0.37 |
0.37 |
0.6 |
0.8 |
1 |
1.5 |
1.8 |
|
Motor power(kw) |
1.38 |
1.75 |
3.8 |
3.8 |
7.5 |
9.75 |
13.5 |
|
Rated voltage(V) |
380/50Hz |
380/50Hz |
380/50Hz |
380/50Hz |
380/50Hz |
380/50Hz |
380/50Hz |
|
Weight (kg) |
680 |
800 |
1500 |
2100 |
3000 |
3500 |
4500 |
3L -10L Bottle water filling
Automatic 5L bottle mineral water production line/ filling machineis used to fill pure water, mineral water and other non-carbonated beverage.
All the machine part which contact with liquid is high quality stainless steel 304. The relative fittings are from international famous brand.
This machine is comprised of rinsing, filling and capping system. Rinsing: grip the bottle neck, rotate filling plate, inverse bottle; internal rinsing and external spraying make bottles be cleaned completely. Filling: gravity filling with holding bottle neck; the special backflow type of the filling valve can avoid leakage after filling and also control liquid level accurately. Capping: magnetic torque bottle holding type can minimize the cap damage rate and make the capping performance the best.
This machine owns the reasonable, stable and safe design. Under the condition that the bottle neck size is the same, only the output star wheel needs to be changed if bottles are different. It improves the efficiency a lot.
Standard :
1.5-10L
barrel: 100-1000BPH
2.food
sanitation stainless steel
3.imported
PLC, electrical, pneumatic
Detail :
1. This big bottle drinking water Production Line is for packing of 5-10L barreled drinking water specially.
2. The whole equipment is composed of lineal 4lines washing, 4head water filling and 1head screw plastic capper, which is an ideal equipment for drinking water, distilled water and purified water.
3.The whole equipment uses the excellent stainless steel, and is easy for washing and can stand corrosion.
